Description
The MOTIV Wireless motor control incorporates relay contacts for controlling a 230 V AC motor.
The module is intended as a replacement for a conventional motor control switch and includes an extension input for connecting a local control push button.
The module is designed for flush mounting behind a blind plate or a push button of your choice. When installed behind a push button, a wall-mounting box with a minimum installation depth of 50 mm is required.
Wiring scheme
Image TBA

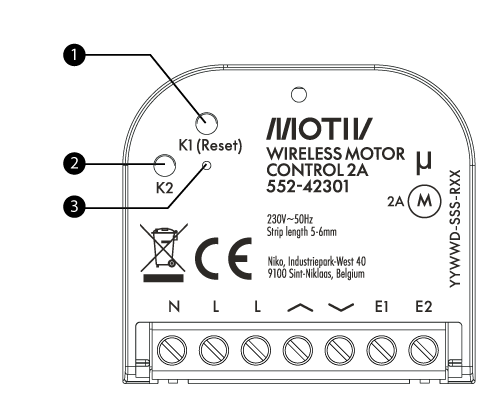

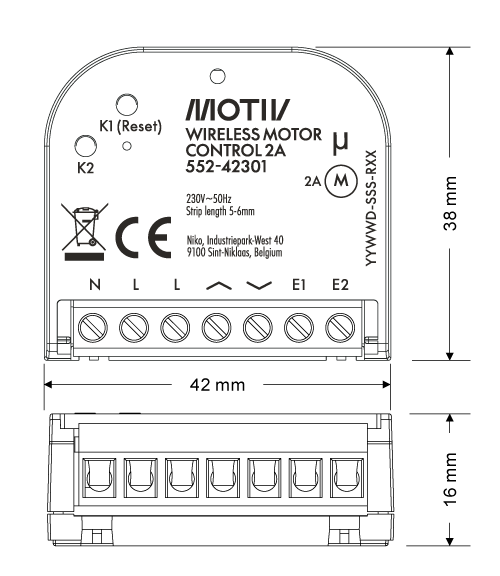

LED and push-button behaviour
Add drawing here with position of LED and push button
LED behaviour
|
LED behaviour |
Description |
|---|---|
|
Off |
Power off |
|
Flashing rapidly |
Pairing mode |
|
On |
Moving |
|
On |
Calibrating (run times) |
|
Flashing slowly |
Overload |
Push-button behaviour
|
Button |
Button press |
Description |
|---|---|---|
|
K1/Reset |
Short press |
Channel 1 load switch on/off |
|
|
Short press five times |
Factory reset |
|
K2/Manual |
Short press |
Channel 2 load switch on/off |
|
S1 |
Short press |
Open (move up) the blind or stop |
|
|
Long press |
Open (move up) the blind until press release |
|
S2 |
Short press |
Close (move down) the blind or stop |
|
|
Long press |
Close (move down) the blind until press release |
